LORAN STATION SANDY HOOK

Station Information

Site Survey:
Construction Date: 1950-1951

Constructed by:

Established:

1951
Disestablished: 31 MAR 1981

Operated by:

USCG
Project code name:



Unit Identifier:

03-36224

Mail address:

AKA:


HAM Call Sign:

N/A

Personnel Allowance: 1953 2 Enlisted
1980 3 Enlisted billets deleted in the OPFO

Station Mascot:

Miscellaneous:
Officer in Charge: None - Part of the group

Station Operations

LORAN-A

40 28 21.09 N 74 00 43.71 W (1960 Mercury Datum)

Chain: U.S. EAST COAST

Station Letter designation: 1951: "A"
1968: "J"
Radio Call Sign: N/A

Declared Operational date: <01 JUL 1951
Operations Ceased: 312400Z DEC 1980

Station Operation: Single MASTER (SM)*

*01 FEB 1969 Nantucket (M) and Sandy Hook (S) swapped functions for the reason Nantucket was PTTI however the local fishermen were highly upset because all their "SECRET" numbers were no longer useable. Within a short time the stations return to their previous functions.

Station pair:
Loran rate:
Coding delay:
Baseline:


SANDY HOOK (M) - NANTUCKET (S)
1H0, 1H5, 3H5
N/A*
Approx. 288.7 Nautical miles

On-air testing date: 1951

On-Air: 1951 1H0
1958 1H5
1968 3H5

Off-Air: 1958 1H0 Change of rate
1968 1H5 Change of rate
312400Z DEC 1980 Termination of service


Monitor Rate:
Equipment: 1975 AN/FPN-53 COLAC Timer and LRE installed; T-325C Transmitter
Radiator: 117ft AS-1088-TRN


Documents:

19 MAR 1980 OFCO Disestablish Loran-A - pdf

11 DEC 1980 Coast Guard News Release - pdf

CGD3 Operation Order 001-81 - pdf

Pictures:


To left: Group Commander's living quarters
In center: Group Electronics Shop (ERS)
To Right: Boating Safety Office
(c./1976)

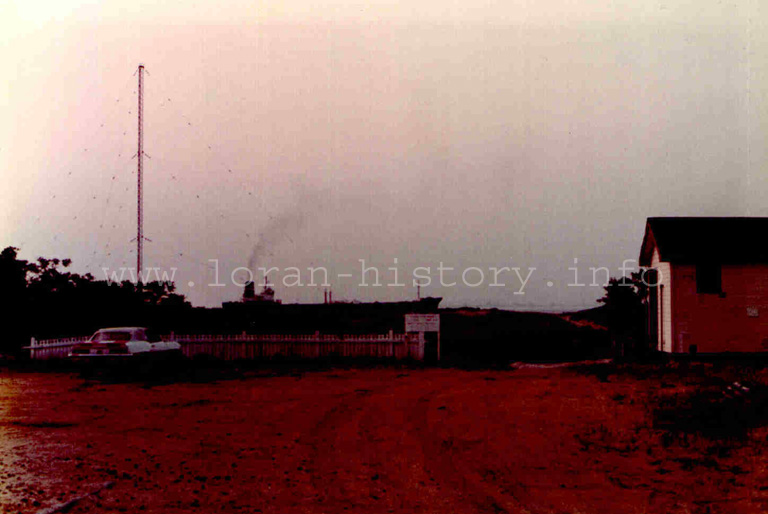

Left: The Loran-A transmitting tower
Right: The Loran shack
(c./1976)
