LORAN STATION JAN MAYEN
LORAN A: 70 55 33.19 N 08 42 44.80 W
LORAN C: 70 54.9N - 08 43.9W (Oct 1, 1964)
LORAN C: 70 54 52.610 N 08 43 58.690 W

Pictures

Loran Station Jan Mayen's website

Fact Sheet

Site Survey:

AUG 1958 – A & C

Construction Date

LORAN A: 1959
LORAN C: 1959

Constructed by:



Established:

LORAN A: 1959
LORAN C: 1960

Disestablished:

LORAN A: NOV 1977
LORAN C;

Operated by:

NORWAY

Chain:

LORAN A: NATO “A”

LORAN C:
SL-6, SL-0, SL-3, 7970 - NORWEGIAN SEA

Station Letter designation:

LORAN A: “J”

LORAN C:
SL-6, SL-0, SL-3, 7970 – “Z”

Station code name:

Chain Code Name: RAIL
DART 5

Station Unit Number:

Loran A: No. 21 NATO Loran station

Radio Call Sign:

JXP

Station aka:

OLONKIN CITY

On-air testing date:

LORAN A: 1959
LORAN C; 1960

Operational date:

LORAN A: 1959
LORAN C: MAR 1960

Operations Ceased:

LORAN A: 10 NOV 1977
LORAN C:

Station Operation:

LORAN A: Single MASTER (SM)
LORAN C: Single SLAVE/SECONDARY “ZULU”

Station pair:

LORAN A:
1L0 – BO

LORAN C:
SL-6 - BO, EDJE, SANDUR
SL-0 - BO, EDJE, SANDUR, SYLT
SL-3 - BO, EDJE, SANDUR, SYLT
7970 - BO, EDJE, SANDUR, SYLT

Loran Rate:

LORAN A: 1L0
LORAN C: SL-6, SL-0, SL-3, 7970

On-Air:

LORAN A: 1959

LORAN C:
SL-6,  MAR 1960
(29 MAR 1962 - ? Master)
SL-0, 1964
SL-3, 1966
7970, 25 FEB 1975

Off-Air

LORAN A:
1L0 – 10NOV 1977 Loran A phased out

LORAN C:
SL-6, 1964 Change of Rate
SL-0, 1966 Change of Rate
SL-3, 25 FEB 1975 Rename the rate 7970,

Monitor Rate:



Equipment:

LORAN-A
Output Power: 160kw
LORAN-C

AN/FPN-38/39, 240Kw
Colac 1970’s

Antenna Type:

LORAN A:
LORAN C:

625ft – Stainless Inc, Model 1300, 1960
1980 -

Personnel Allowance:

1960 – 40 man crew

Miscellaneous:

1960 – a second Loran C AN/FPN-39 transmitter installed
29 MAR 1962 – Master because of tower collapsed at EJDE
17 OCT 1980 – Tower Failure – Off Air

Commanding Officers / Officers in Charge



Documents:

03 APR 1962 - White House Brief - Ejde tower collapsed, Jan Mayen order operational Master

Pictues - Click on picture for larger image

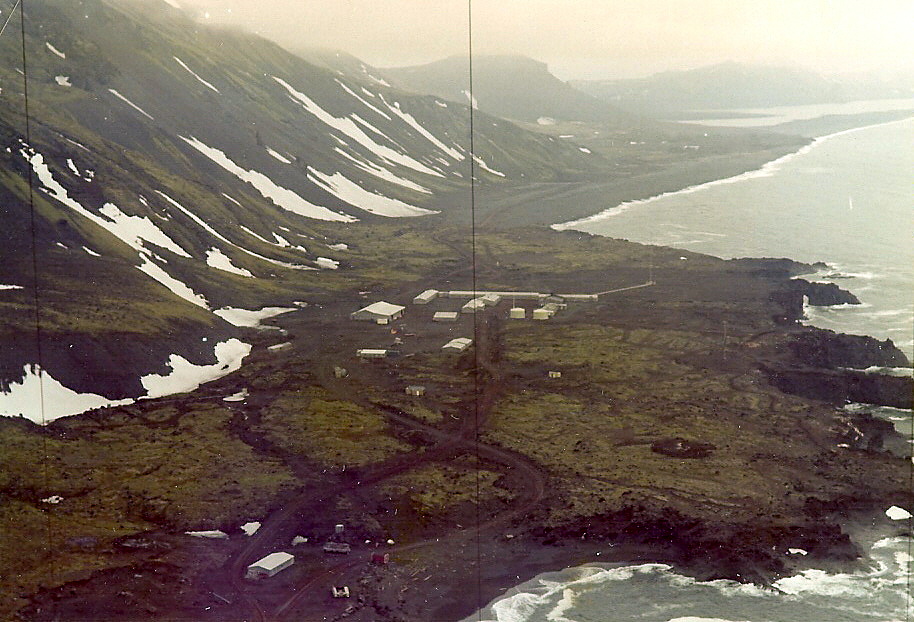

Loran Station Jan Mayen circa 1960

Loran Station Jan Mayen circa 1960

Photo provided by Carl Burkhart

c./unknown

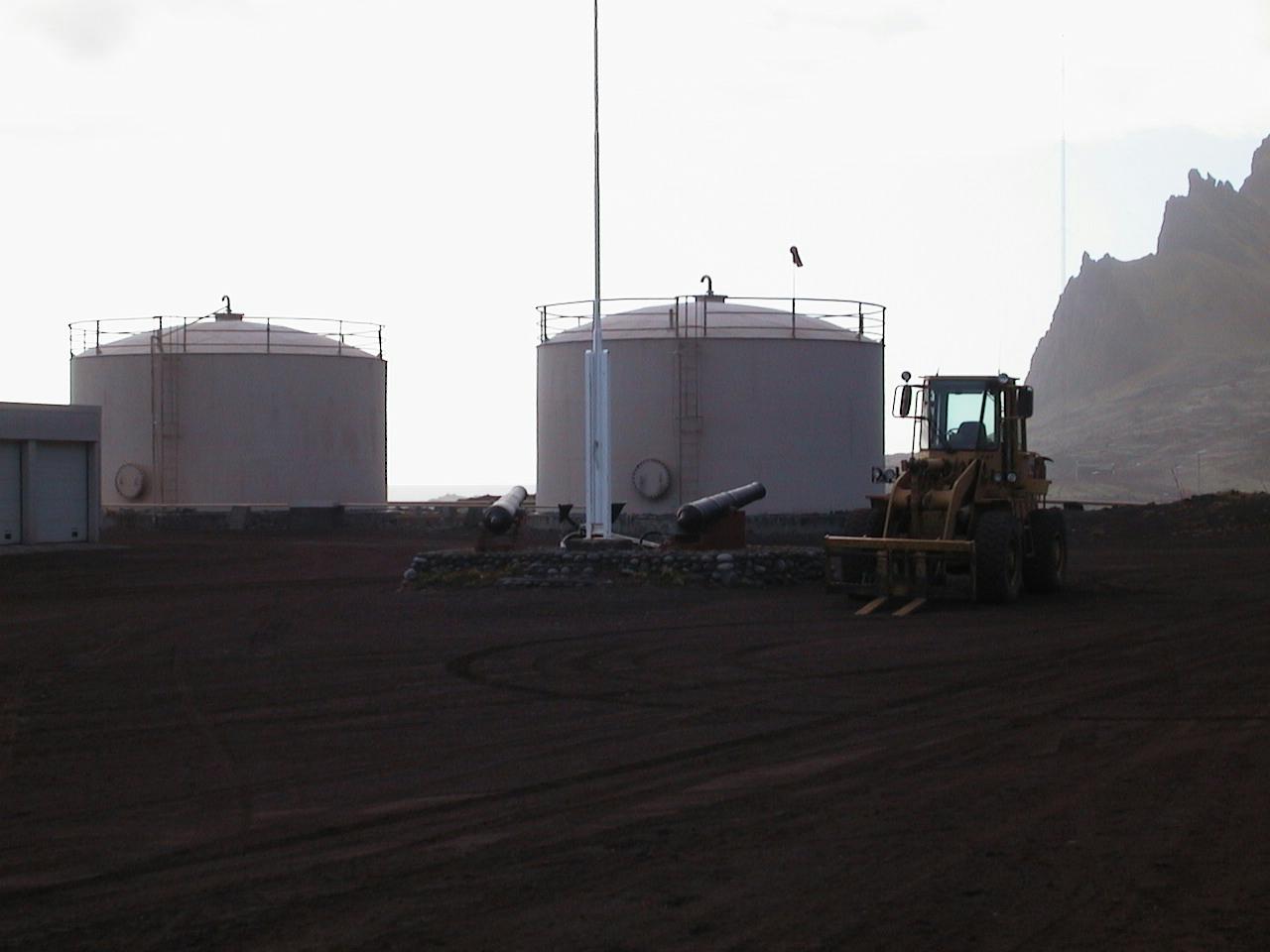

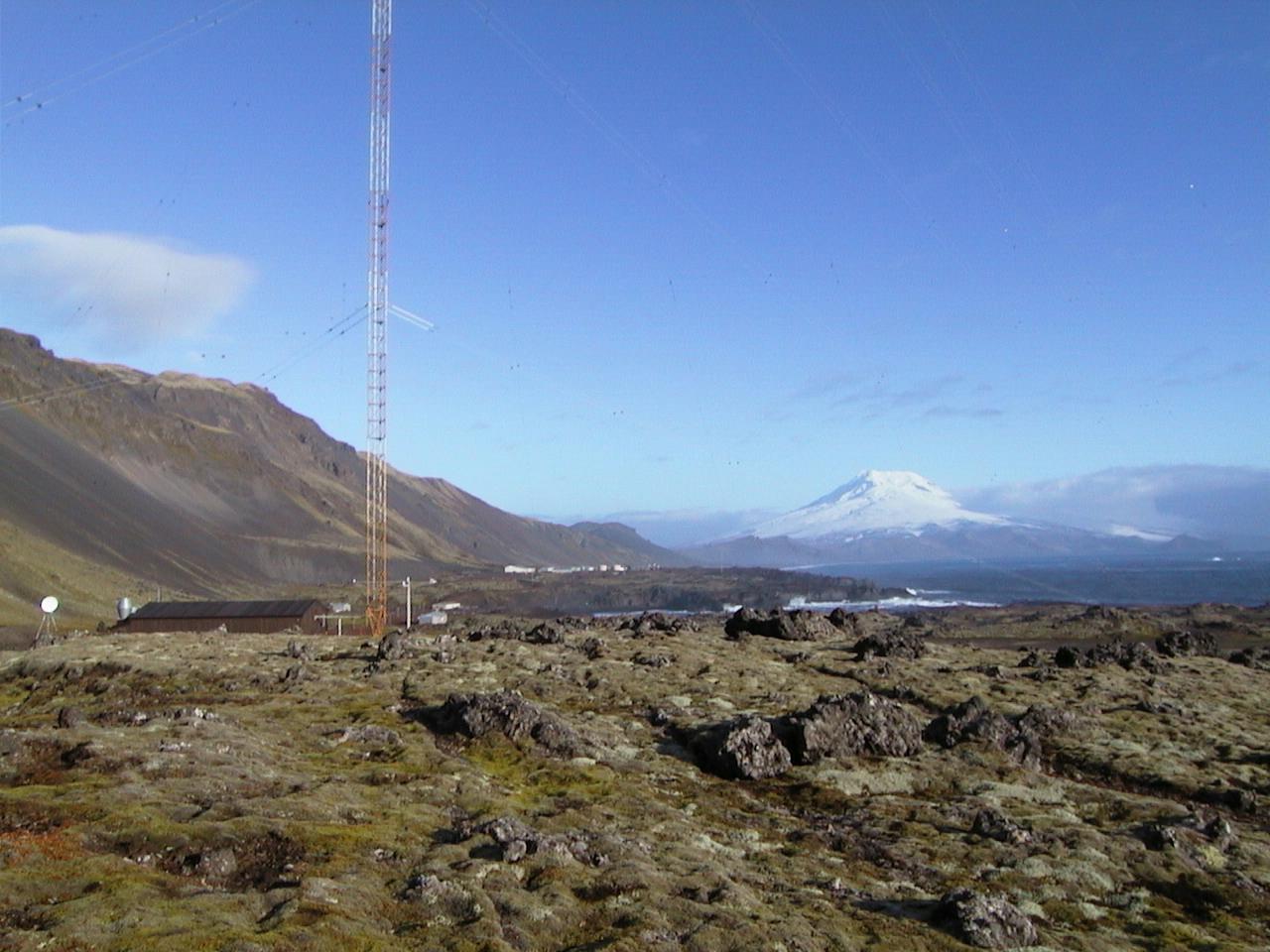

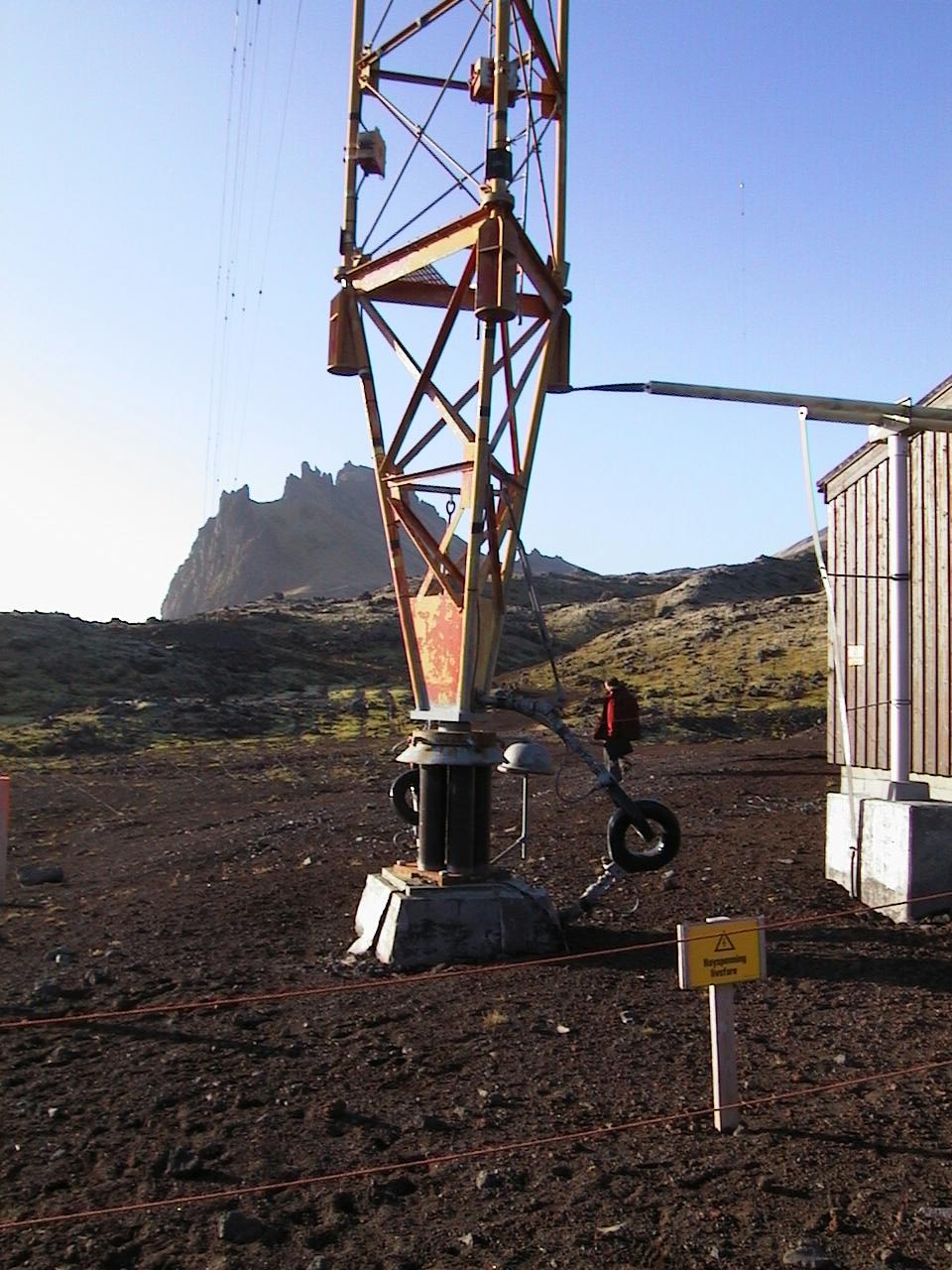

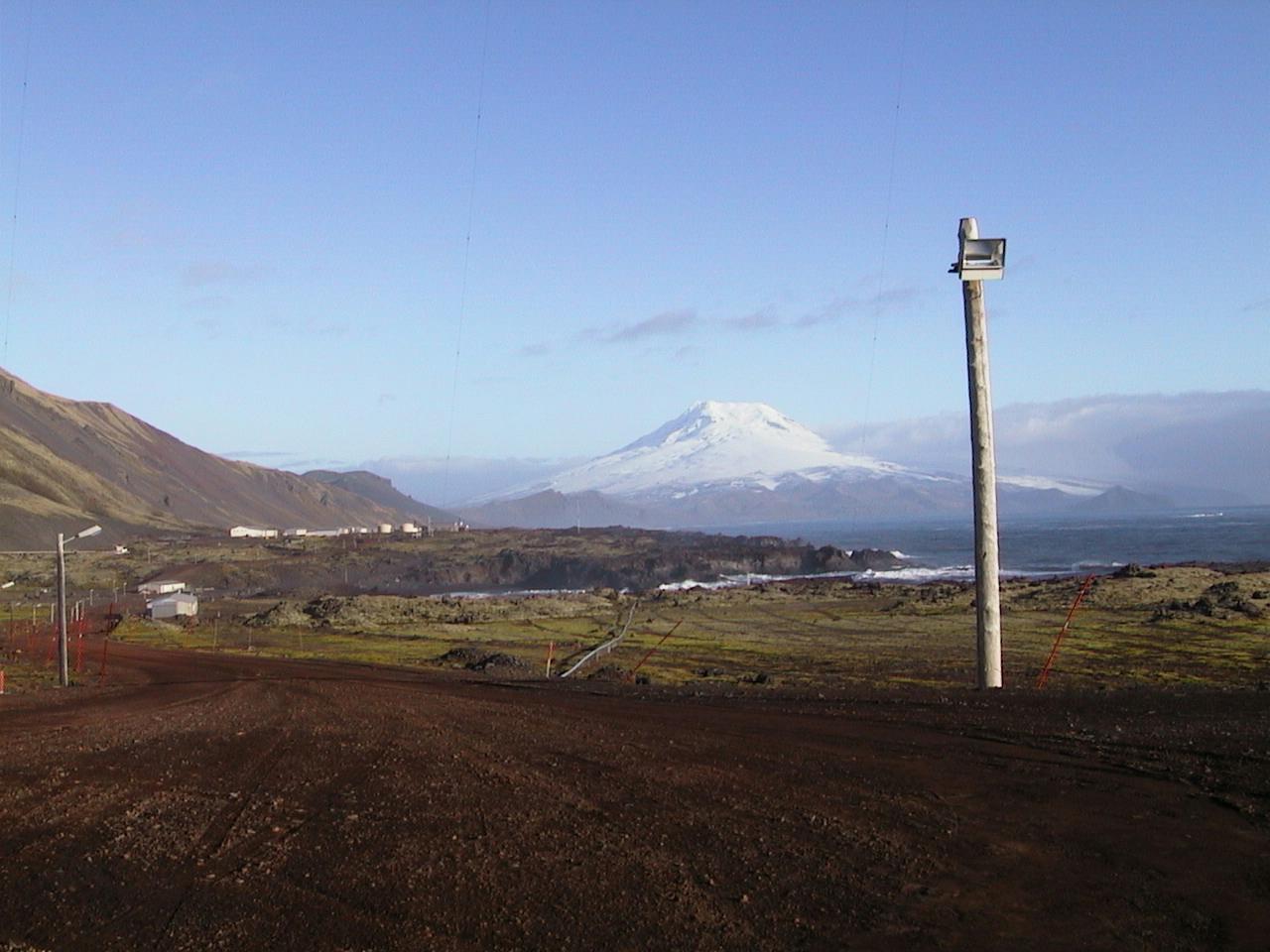

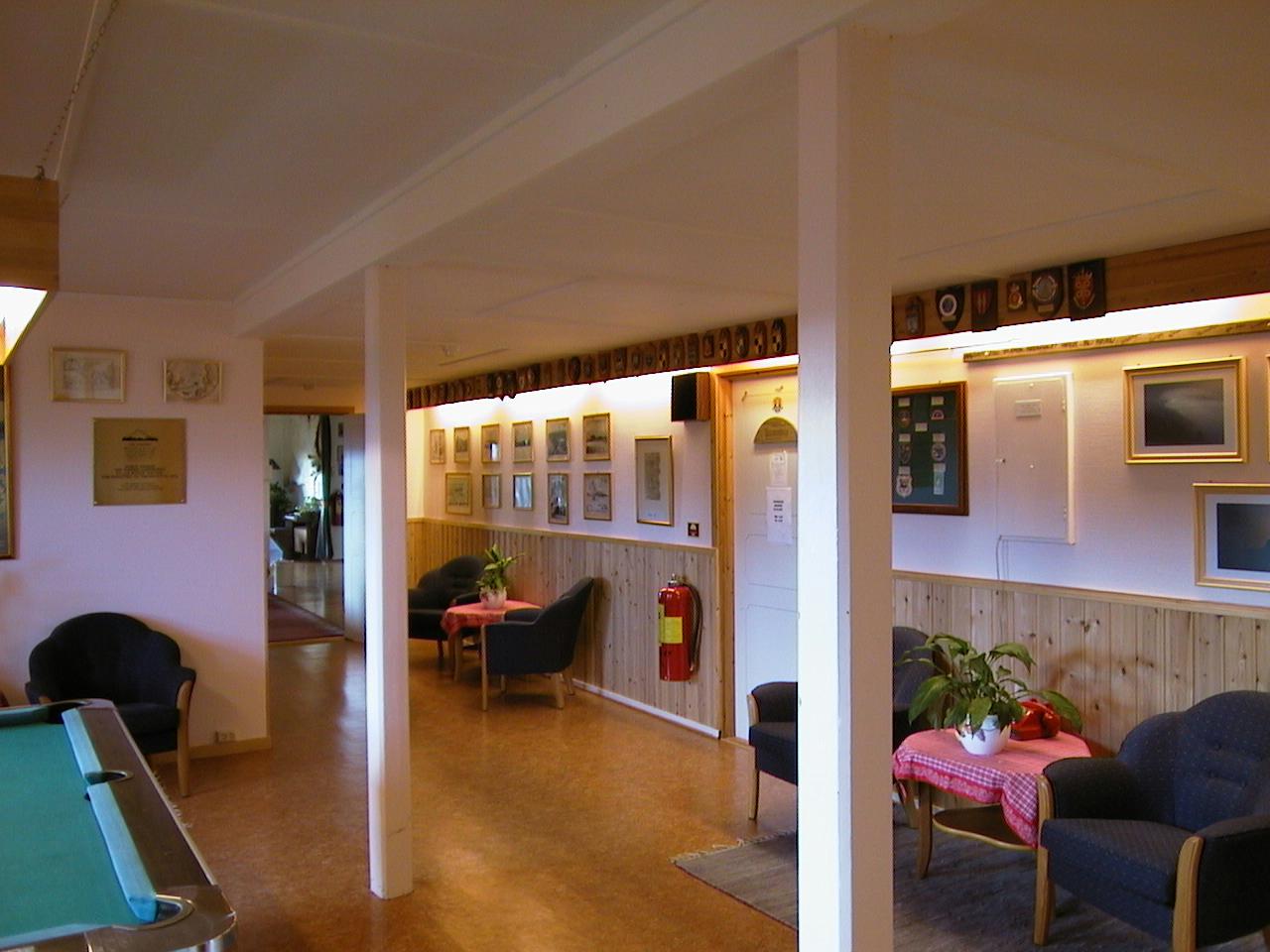

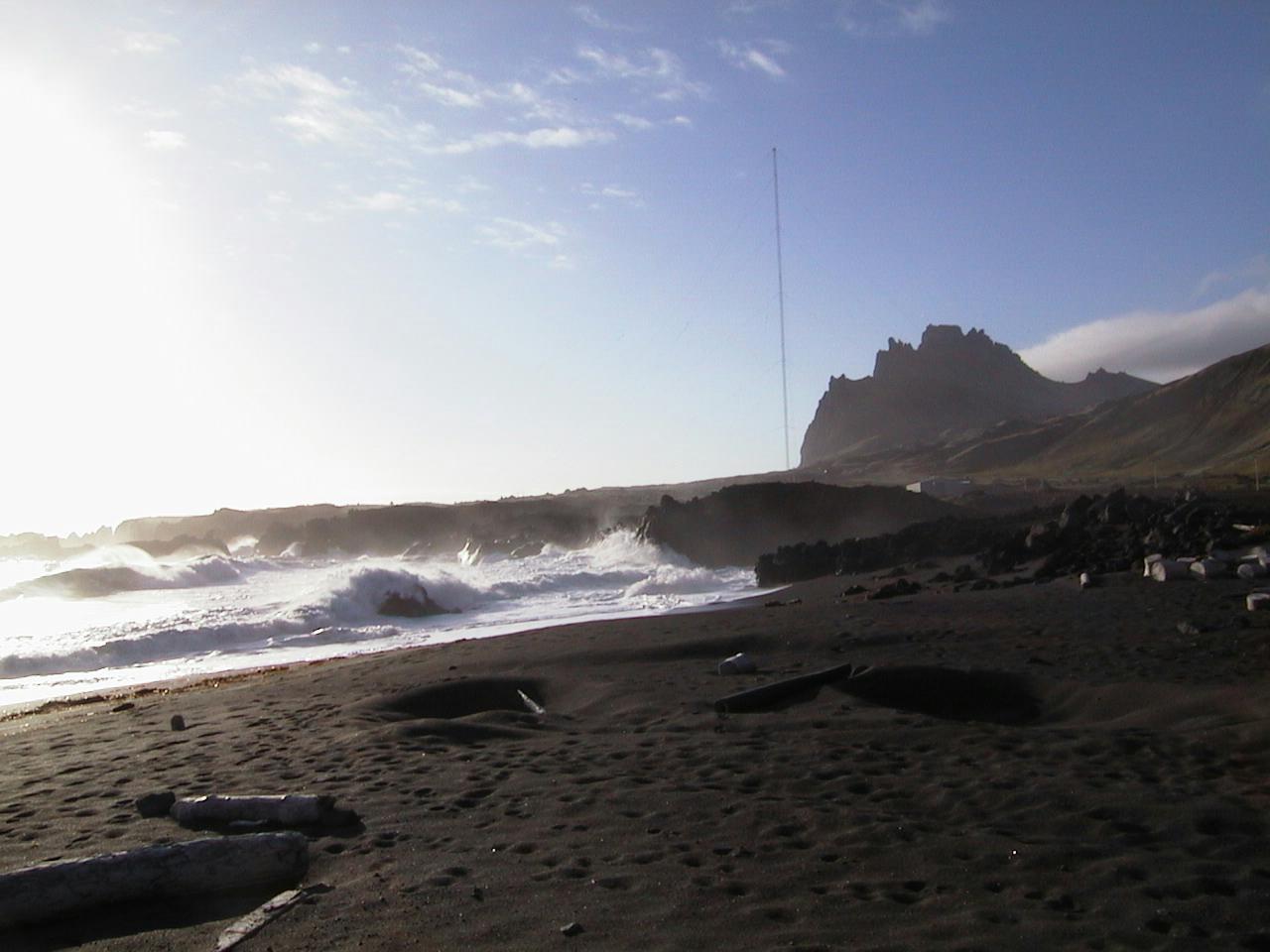

The below photos were contributed by Ivan Carlsson c./2001

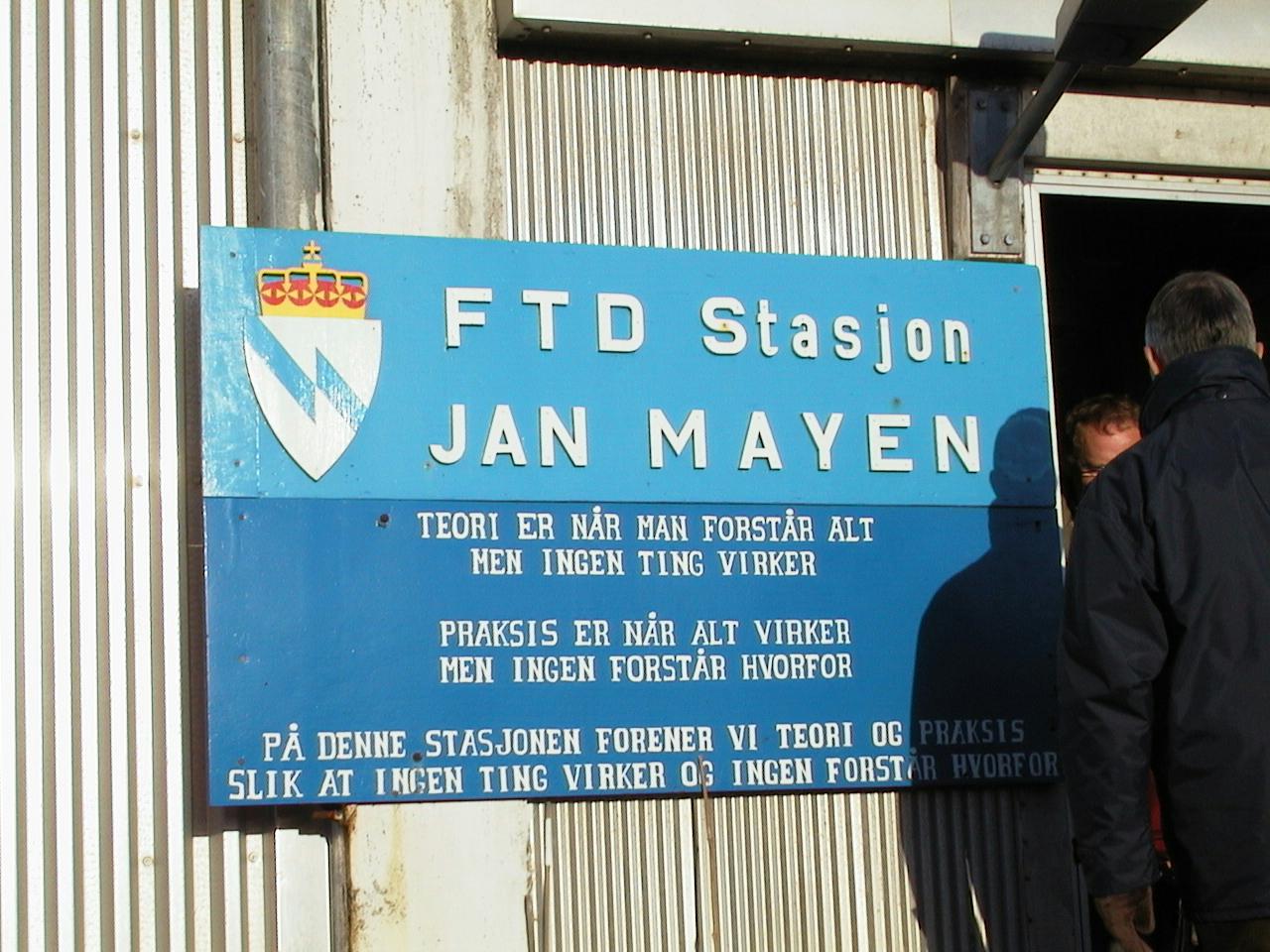

“Theory is when you understand everything, but nothing works.
Practice is when everything works, but nobody knows why.
On this station we unite theory and practice, so nothing works and none understands why”

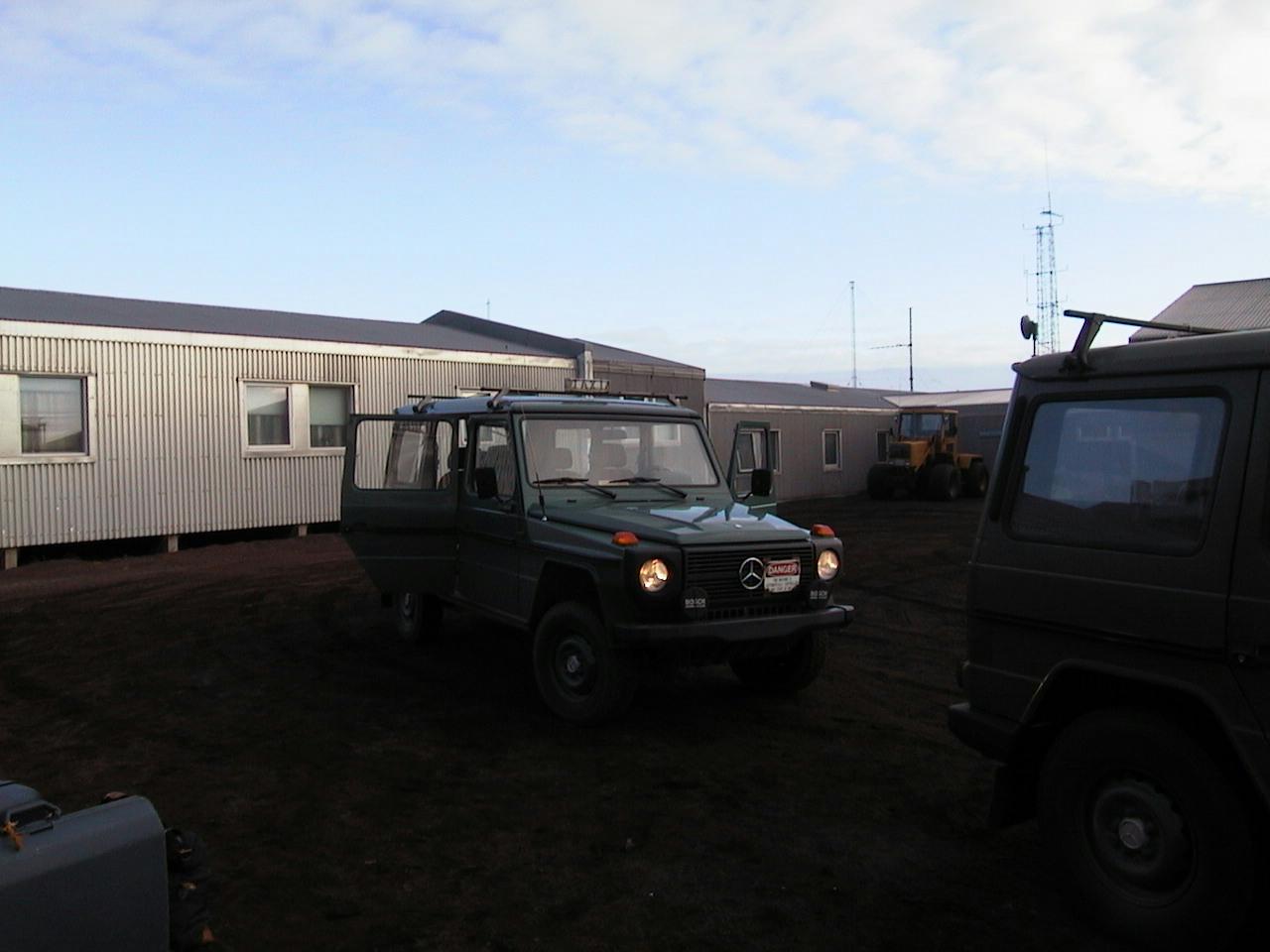

Taxi

Thanks Ivan!
